| Categories | Type 1 To Type 2 EV Charging Cable |
|---|---|
| Brand Name: | ANS |
| Model Number: | ANSAG-T2-T2-32-ST |
| Certification: | TUV |
| Place of Origin: | china |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000PCS/month |
| Delivery Time: | 20-30days |
| Packaging Details: | 15.7*15*3.15(in) |
| Product name: | 32A Type 1 to Type 2 EV Charging Cable |
| Brand: | ANS |
| Material: | TPU |
| Rated Current:: | 32A |
| Stardard: | IEC 62196-2 |
| Protection level:: | IP67 |
| Warranty: | 2years |
| Certifications:: | TUV |
| Color: | black&grey |
| Company Info. |
| Chengdu Honors Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
32A Spring Cable SAE J1772 to IEC 62196-2 EV Plug Connector Type 1 to Type 2 EV Charging Cable
Product Description
Input & Output | |||
Input voltage/Output voltage | 100~250V AC | Max. output current | 32A 1Phase |
Input frequency | 47~63Hz | Charging interface type | Type1-Type 2 |
Max. output power | 7kW | ||
Protection | |||
Over voltage protection | yes | Earth leakage protection | yes |
Under voltage protection | yes | Over-temp protection | yes |
Over load protection | yes | Lightning protection | yes |
Short circuit protection | yes | ||
Function and Accessory | |||
Ethernet/WIFI/4G/Bluetooth | No | Cable gauge | 3x6+2x0.5mm2 |
Plug type | Type 1-Type2 male&female | Plug material | Thermoplastics |
Length | 5 meters or customization | Cable material | TPU |
Working environment | |||
Waterproof Protection degree | IP55 | Maximum altitude | <2000m |
Environment temperature | -40℃ ~ +50℃ | Cooling | Natural air cooling |
Relative humidity | 0-95% non-condensing | Standby power consumpiton | <8W |
Package | |||
Dimension (W/H/D) | 40/38/8cm | Weight | 4KG |
Certificate | CE, TUV, | ||
Product Detail
Feature of Type1-Type 2 Ev Charging Cables
Mechanical life: unloading and inserting >10,000 times
Impact resistance: 1m height drop and 2 tons vehicle overpressure operation
Insulation resistance: >1000Ω (DC500V)
Withstanding voltage: 2500V
Contact impedance: 0.5mΩ Max
Pin temperature rise: <50K
EV charging cable with charging plug and connector, type 1 to type 2, 1 phase
Vehicle side (EV): 32A 1 phase Type 1 Connector, screw type, for charging your EV up to 7.2 kW.

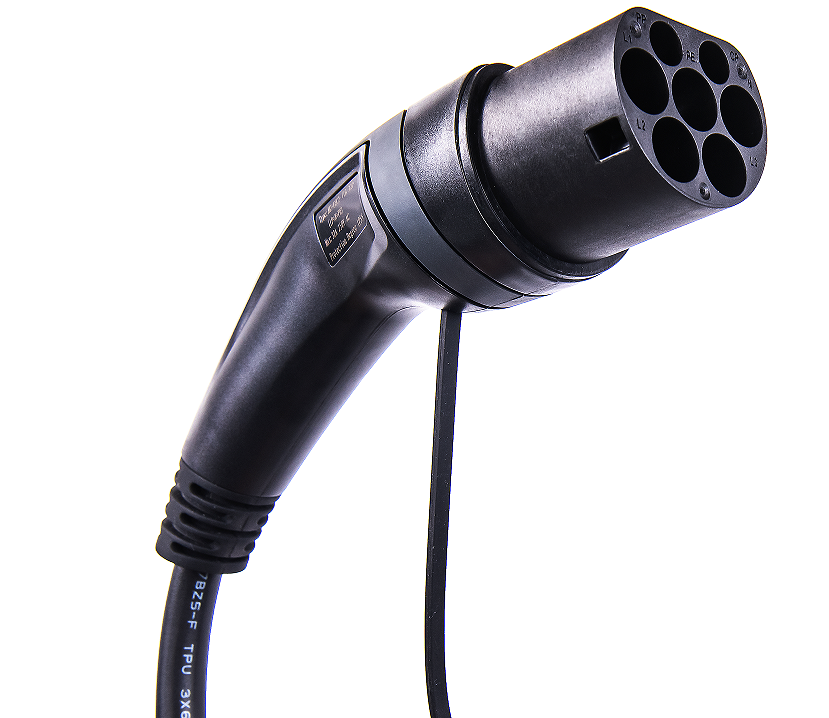

Infrastructure side (EVCS): 32A 1-phase Type 2 charging plug
Compliance standard: IEC/EN 62196-1/2:2016
Attractive, ergonomic hand-held design for easy plugging and unplugging
Working length of 5 m, made of thermoplastic material. Protection class IP55, flame retardant, pressure, wear and impact resistant.
