| Categories | Audio Fiber Converter |
|---|---|
| Brand Name: | Beyondopto |
| Model Number: | BY-XLR-2AA-SM001 |
| Certification: | CE FCC,ROSH |
| Place of Origin: | ShenZhen,China |
| MOQ: | 1 pair |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 1000 pairs per month |
| Delivery Time: | 1-2 working days |
| Packaging Details: | Paper box packing for export,including one transmitter and one receiver, |
| Wavelength: | 1310nm&1470nm~1610nm |
| Rx sensitivity: | -30dBm |
| Optical connector: | FC、ST、SC (optional) |
| Distance: | 20KM/40KM/60KM/80KM (SM) |
| Input / Output Impedance: | 10K Ohm |
| Sample Rates From: | 48kHz |
| Shipping Weight:: | 2.5kg |
| Dimensions:: | 168mm × 154mm × 45mm |

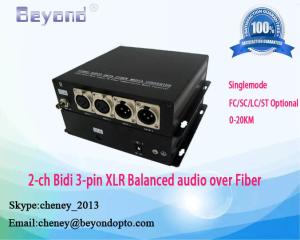

2 CH BIDI Balanced Audio(XLR)To Fiber Optic support 2 Channel BIDI balanced audio 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
Specifications
Opitcal:
| Wavelength | 1310nm&1470nm~1610nm |
| Output Power | -14~ -8dBm / -5~0dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -30dBm |
| Optical connector | FC,ST,SC (optional) |
| Distance | 0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM) |
Balanced Audio
| Number of Channels | 2 Input +2 Output |
| Input Connector | XLR(female) |
| Output Connector | XLR(male) |
| Input / Output Impedance | 10K Ohm |
| Input capacitance LINE inputs | 10 pF |
| Max input/output voltage | 3.0Vp-p |
| Frequency Response | 10 Hz～24kHz @±3dB |
| Sample Rates From | 48kHz |
| SNR | > 80dB |
Electrical & Mechanical
| Input Power Requirements: | DC 5V@2A |
| Power Adapter: | AC 90V~240V |
| Power Consumption: | < 5W |
| Stand-Alone Dimensions: | 168mm × 154mm × 45mm |
| Shipping Weight: | (include Transmitter & Receiver ) 2.5kg |
Environmental
| Operating Temperature: | -20°C ~ +75°C |
| Storage Temperature: | -40°C ~ +85°C |
| Relative Humidity: | 0% ~ 95% (non-condensing) |
| MTBF: | >100,000 hours |
connection diagram:
|
