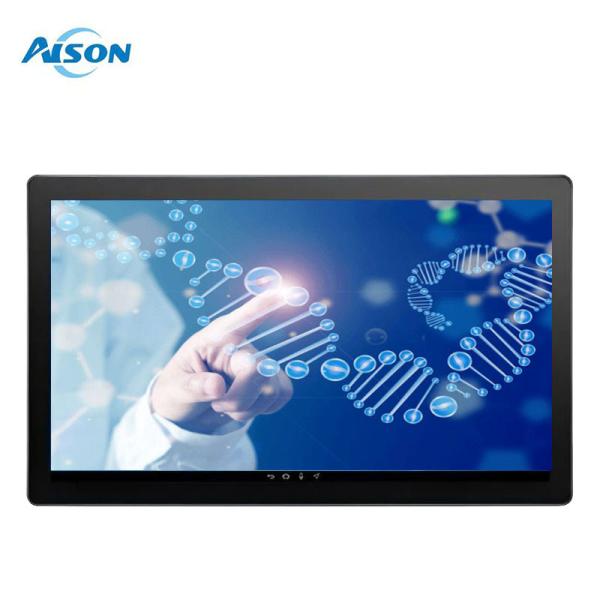

15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications

Categories Industrial TFT Display
Brand Name: AISON
Model Number: Z156FH03-CT2
Certification: ISO9001 / ISO14000/ROHS
Place of Origin: Guangdong,China
MOQ: 1
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Delivery Time: 7 working days
Packaging Details: Carton/Blister
Product Name: 15.6 inch 1920x1080 LVDS TFT Display
Resolution: 1920x1080
Module Size: 372.16*221.59*8.2mm
Active area: 344.16 (H) ×193.59 (V) mm
LCM Type: LVDS
Brightness: 500/1000 cd/m2
Operating temperatures: -20 to 70 degree
Storage temperatures: -30 to 80 degree
Display Type: Normally Black
Touch: PCAP Touch
Touch Interface: USB &I2C
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

15.6'' Full HD TFT LCD Module Display 1920x1080 LVDS Interface With PCAP Touch Screen For Outdoor Applications

15.6'' Full HD TFT LCD Module display 1920x1080 LVDS Interface with PCAP Touch screen For Outdoor Applications


General Description

15.6” wide format Active-Matrix LCD module (“TFT LCD”) with Full HD resolution. It combines wide viewing angle 85/85/85/85 with high luminance 1000cd/m2. The 15.6 inch LVDS TFT Display has very good readability even under strong and direct sunlight.

Typical applications:

  • Marine
  • General outdoor usage

Main characteristics are:

  • Diagonal : 15.6”
  • Resolution : Full HD, 1920 x 1080
  • Wide viewing angle (u/d/l/r) : 85°/85°/85°/85°
  • High luminance : 1000 cd/m2
  • With PCAP Touch Panel

Aison is an TFT LCD Screen manufacturer, providing a full range of 0. 85 inch to 15.6 inch small and medium size standard TFT LCD modules, TFT screen modules, TFT display modules, display industry, industrial TFT Display, visually outstanding TFT LCD display in sunlight screen, industrial custom TFT displays, TFT full temperature LCD dispalys, industrial TFT LCD modules, industrial touch screen.Our TFT LCD modules are ideal for industrial control equipment, medical devices, POS systems, consumer electronics, communication equipment, and office supplies.and more.

General Data

Model Name15.6 inch PCAP LVDS TFT Display
Resolution1920x1080
Model Size (W*H*T)
372.16*221.59*8.2mm
Display Area (W*H)344.16 (H) ×193.59 (V) mm
InterfaceLVDS
Display ModeNormally Black,Transmissive
Viewing Angles85/85/85/85
Brightness1000 cd/m2
Pin number30 pin
Touch
with Capacitive Touch Panel
Operating temperatures-20 to 70
Storage temperatures-30 to 80

Drawing


Product Details


TFT Applications

From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.
